TWIN SPINDLE AUTOMATED WET-BLAST SYSTEM

Guyson Corporation has introduced a compact industrial wet blast system with two rotary spindles and programmable vertical motion of the slurry-blast guns for blast cleaning and surface preparation in the work cell.

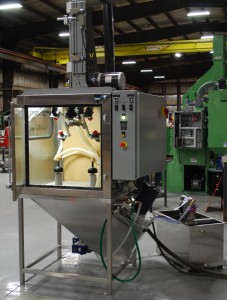

Guyson_Twin_Spindle_Automated_Wet_Blast_SystemThe Vaqua Komet automated wet-blast cabinet has a 40 x 40-inch footprint and is fabricated from polished 304 stainless steel to ensure corrosion resistance. The wet blasting enclosure, which has thick rubber curtains hung around its inside walls, features a large safety glass view window equipped with an interior wiper and water spray to maintain visibility. A single electrically interlocked 36 x 36-inch swing-out door provides access to the blast chamber for loading of components and for inspection, adjustment and maintenance of the wet-blast machine.

Four wet blasting guns fitted with boron carbide nozzles are mounted on easily-adjusted brackets, allowing the guns to be positioned at the correct angles and distances for coverage of component surfaces. The gun brackets are rigidly attached to a ballscrew/ballnut linear actuator installed on the exterior of the wet-blast cabinet. The stroke and vertical traversing speed of the actuator is adjustable, as is the rotation speed of the spindles, enabling a controlled and repeatable surface treatment process.

To read the complete text of this product news release, see our What’s New Product News announcement.
