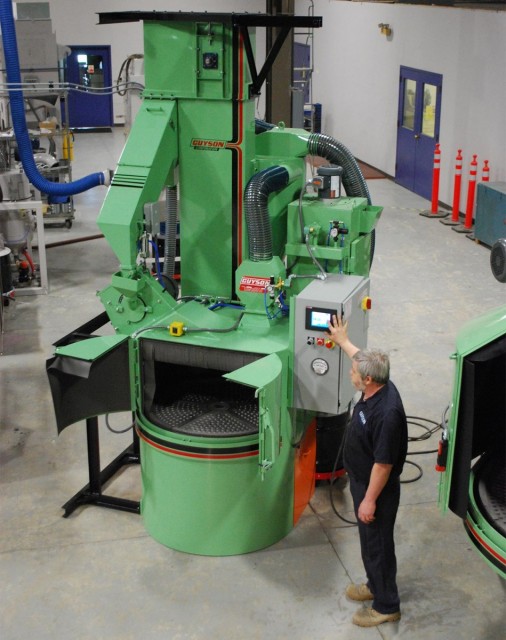

The GWB-401T is a versatile airless wheel-blast machine designed for high-quality, high-speed, and high-volume processing. Its compact footprint maximizes productivity while minimizing the amount of valuable shop floor space required.

A 40-inch diameter rotary table provides a 2,000-lb load capacity, making it ideal for processing heavier components. The blast cabinet is heavily armored for long service life, featuring cast NI-HARD wear plate protection in high-impact areas, along with a full rubber lining throughout the interior.

Optimized Blast Performance

The GWB-401T is equipped with a single 5 HP direct-drive blast wheel, positioned at the optimal angle and distance to ensure uniform coverage of components on the rotary table.

Advanced Media Reclamation

Guyson’s advanced media reclaim system ensures consistent blasting performance and media longevity. The system includes:

-Scalping sieve

-Fine-tunable cascade airwash separator

-Cyclone separator

This sensitive reclamation system is essential for applications using fine or microscopic media, including non-destructive cleaning processes.

Integrated Dust Collection

An integral cartridge-style dust collector is standard on the GWB-401T. Features include:

-Automatic reverse-pulse filter cleaning

-Easy-to-read manometer gauge for filter monitoring

-Intuitive Touch-Screen Controls

A modern touch-screen interface simplifies operation and improves reliability by eliminating wearable electrical components. Operators benefit from clear graphics, on-screen instructions, and system prompts for efficient, user-friendly control.
