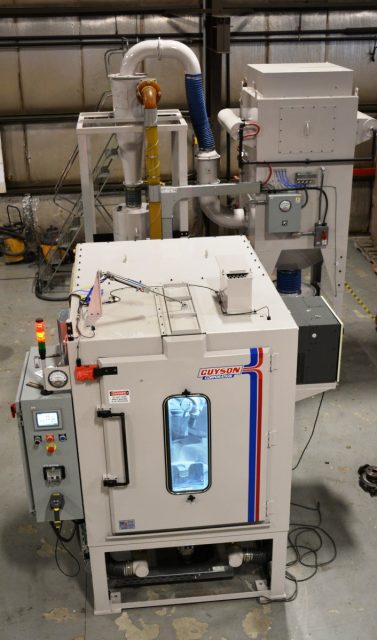

Guyson has just completed another one of its popular RB-9, robotic blasting systems. The customer had a very demanding surface preparation specification that could only be achieved by precise robotic gun manipulation and part fixturing and the use of high performance model 75/12 media cyclone.

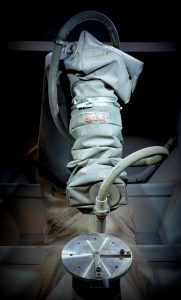

This machine is equipped with a FANUC M10iA six axis robot that is protected with a Guyson custom hypalon robot suit. The suit is designed around each specific movement of the robot eliminating the possibility of faults due to the suit.
In the cabinet the part is held by a custom design and fixture made by Guyson. Making sure that the part is specifically mounted for a direct blast in the right sections for a ultimate result, complete with a continuous servo for rotation of parts.
Guyson’s high performance cyclone reclaimers are the most efficient available .They are lined with high durometor urethane providing maximum abrasive resistance. The longer cone design creates a high velocity separation of fines and fractured media from reusable material.Fine-tuning vents on the cyclone that enable adjustments for maximum separation efficiency, as well an tuning vortex for media grit size adjustments .This makes Guyson’s reclaim systems the best in the market.
The system has a Guyson model D- 2000 dust collector with the average efficiency of 99.99% for particles of .5 micron and above. The body is fabricated with continuously welded 12-gauge steel plate and quiet operation – less than 80 dBA. Guyson Dust Collectors also have an exclusive Magnehelic® gauge that displays pressure differential across the filter and indicates when cartridge change is needed.
